MikroTik mini-PCIe 4G LTE6 modem module

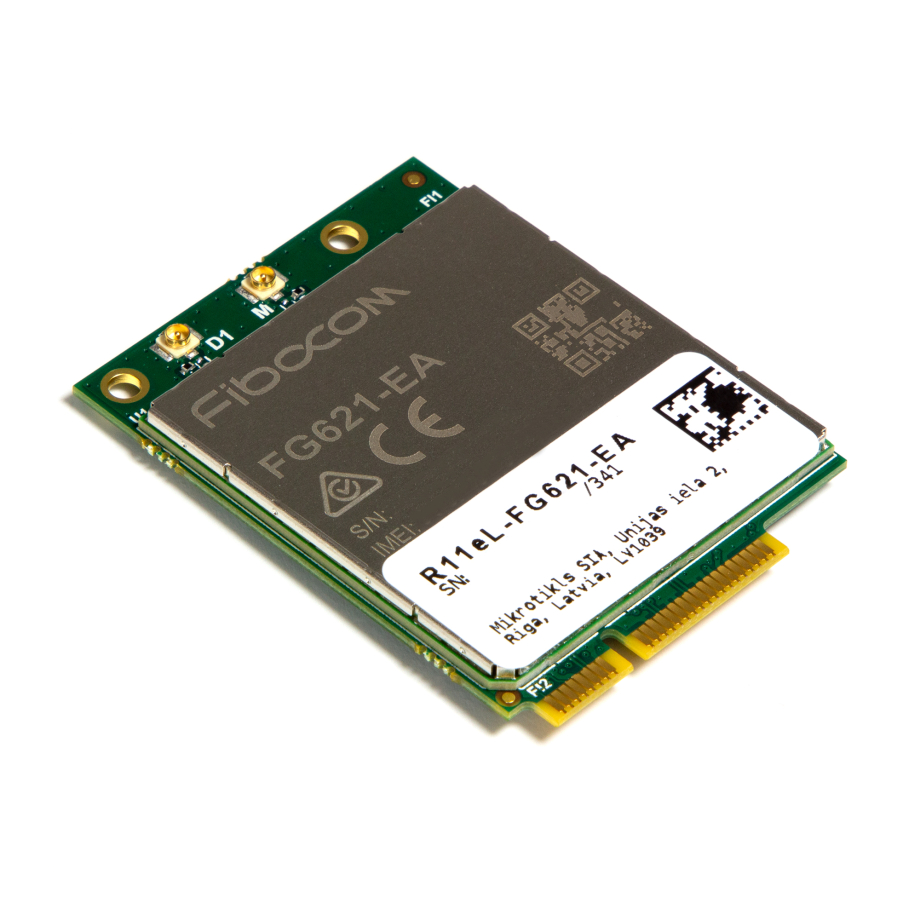

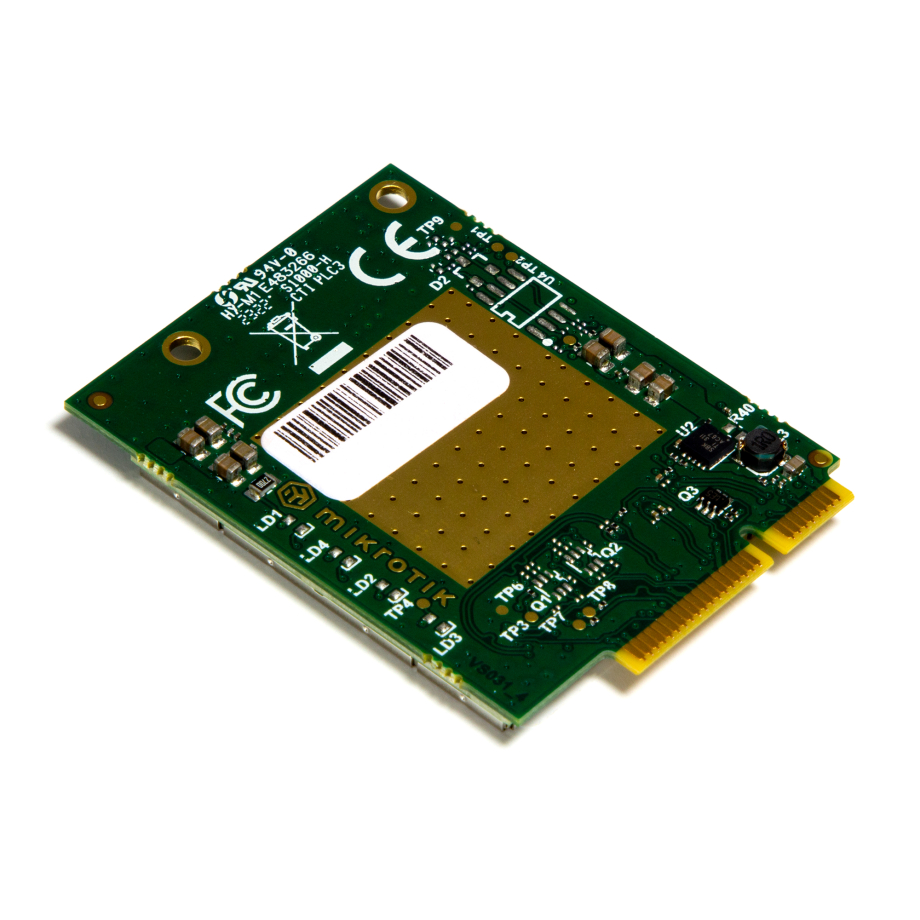

The MikroTik R11eL-FG621-EA mini-PCIe 4G LTE6 modem module is a specialized component engineered for enhanced LTE connectivity across the EMEA, APAC, and Australia regions. It is specifically designed to support a broad range of LTE frequency bands, including the significant B28 band, which is crucial for comprehensive coverage and performance in these territories. Supporting LTE Category 6, this module can deliver significantly improved data throughput compared to earlier LTE categories. It achieves download speeds up to 300 Mbps and upload speeds up to 50 Mbps, leveraging advanced features such as carrier aggregation to optimize data transmission and network efficiency.

While the R11eL-FG621-EA modem is built to the mini-PCIe form factor and can be recognized by any MikroTik RouterOS product with an appropriate slot, it is fully compatible only with the full-sized LtAP. This specific compatibility ensures optimal performance and functionality when used in conjunction with the LtAP, although broader compatibility is possible with the use of a PCIe slot or a USB adapter.

A standout feature of the R11eL-FG621-EA is its ability to perform carrier aggregation, allowing the modem to utilize multiple frequency bands concurrently. This capability is particularly advantageous in densely populated areas or regions with many LTE users, as it significantly enhances network responsiveness and efficiency. Carrier aggregation proves especially beneficial in rural settings where it can improve signal strength and double internet speeds, depending on the service provider.

Efficiency is a key aspect of the R11eL-FG621-EA design, with a focus on low power consumption with just 3 W. This makes it ideal for use in applications where power efficiency is critical, such as mobile or remote deployments. The module adheres to relevant international regulatory standards, ensuring compliance with FCC, CE, and other regulatory bodies. This compliance guarantees that the device meets the stringent requirements for safety and operational integrity.
