Brand
Manufacturer part number
LTE-IAW-5dBi
Warranty
?
12 months
EAN
0708747440140
LTE Antenna 5dBi Indoor White (2pcs)
Detailed description
Indoor omnidirectional 4G LTE antenna with SMA Male connector, operating in the frequency range 0.690 - 2.690 GHz. The antenna has a gain of 5dBi. The kit consists of two antennas.
Technical Specs / Datasheet
Compatible products
Specifications
Antenna
Antenna Design
Omni
Mobile Antenna Frequency Range & Gain
0.690 - 2.690 (GHz) 5 (dBi)
Polarization
Vertical
VSWR
< 2.5
Impedance
50 Ω
Maximum Input Power
50 W

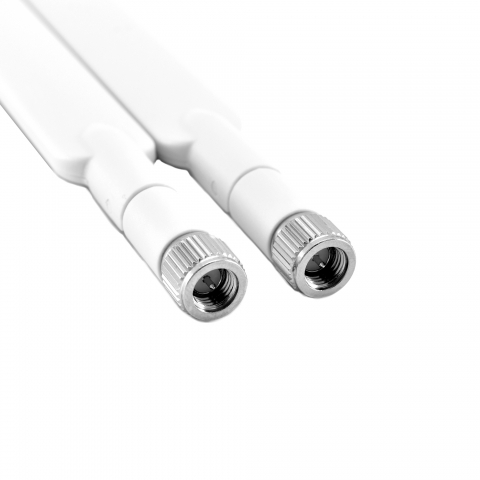

Connectors
RF Connectors
(1) SMA Male
Physical Parameters
Color
White
Material
ABS Plastic

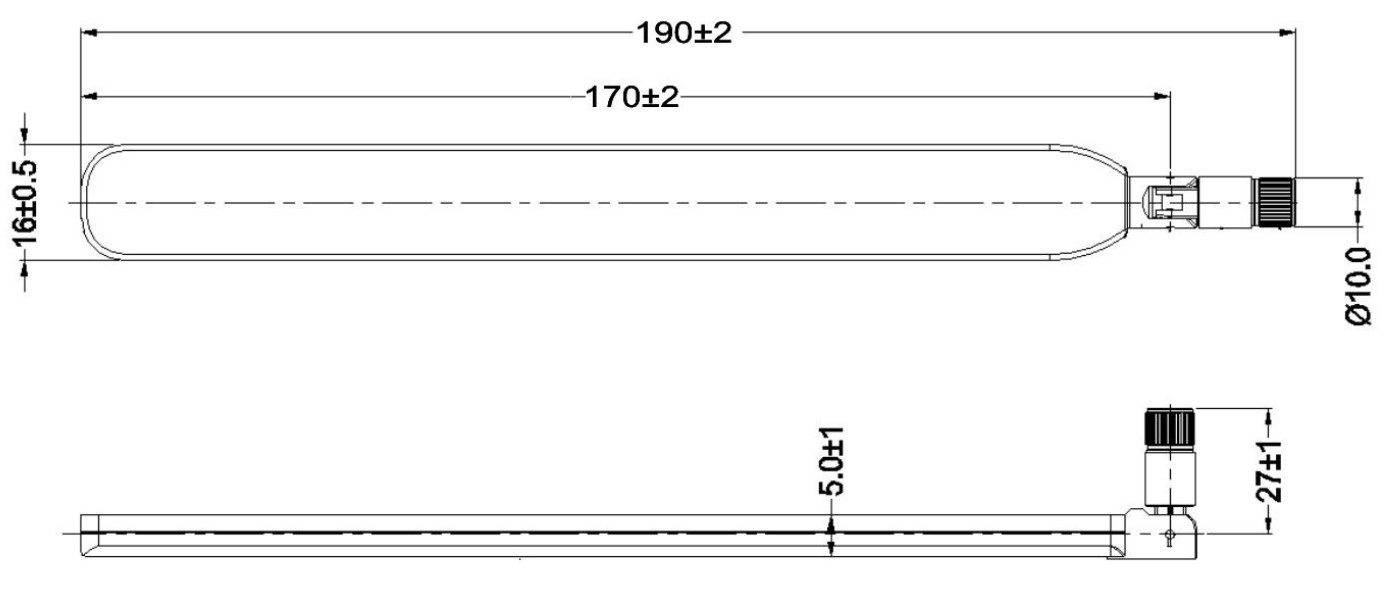

Dimensions
190 x 17 x 5 mm
Operating Temperature
-40 °C to 80 °C
Environment
Indoor
Package Contains
Units
2 pcs
