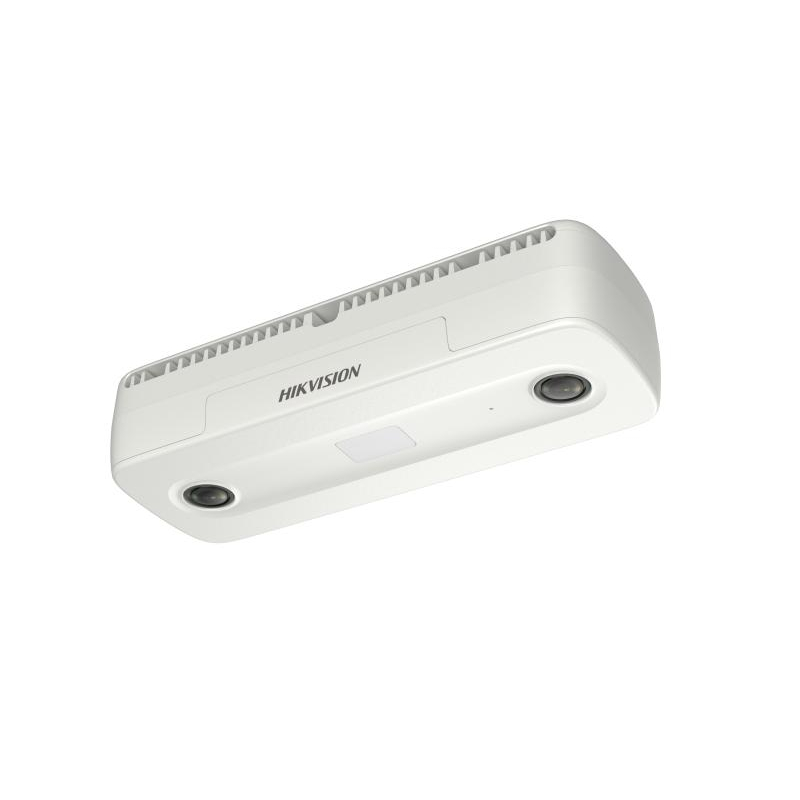

HikVision Dual-Lens People Counting Camera DS-2CD6825G0/C-IS

The DS-2CD6825G0/C-IS features two 1/2.7" progressive scan CMOS sensors, each delivering a 2 MP resolution (1920 × 1080) for synchronized stereo imaging. Equipped with fixed 2 mm lenses, the camera provides a wide viewing angle with 104.5° horizontal, 70.5° vertical, and 112° diagonal coverage, ensuring comprehensive monitoring of entry and exit points. The F2.25 aperture enhances light sensitivity, achieving color imaging down to 0.0176 Lux and black-and-white imaging to 0.0035 Lux. An IR cut filter enables day/night functionality, with 850 nm IR illumination effective up to 6 meters. The camera supports multiple video compression standards, including H.265+, H.265, H.264+, and H.264, with a bit rate range of 32 Kbps to 16 Mbps, optimizing bandwidth and storage without compromising image quality.

Utilizing deep learning algorithms, the DS-2CD6825G0/C-IS provides accurate bi-directional people counting, distinguishing between entries and exits in real time. The system supports height-based target filtering, reducing false counts from objects or non-human entities. Data is stored on a built-in 300 MB eMMC module and can be uploaded in real time or according to predefined statistical cycles (daily, weekly, monthly, or annually). The camera integrates with platforms like iVMS-4200 and Hik-Connect, facilitating centralized data management and remote access. Additional analytics include motion detection, video tampering alarms, and exception alerts for network disconnections, IP conflicts, and storage issues, enhancing security and operational awareness.

Designed for seamless integration into modern IP surveillance systems, the DS-2CD6825G0/C-IS supports a wide array of network protocols, including TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, SNMP, and IPv6. It accommodates up to 32 users with three access levels and supports simultaneous live viewing on up to 20 channels. Security features encompass password protection, HTTPS encryption, 802.1X authentication, and IP address filtering. The camera operates reliably in temperatures ranging from -30°C to 45°C and humidity levels up to 95%, with an IP67-rated housing providing resistance against dust and water ingress. Power options include 12 VDC and PoE (802.3af), with a maximum consumption of 8.3 W, ensuring energy-efficient operation.
