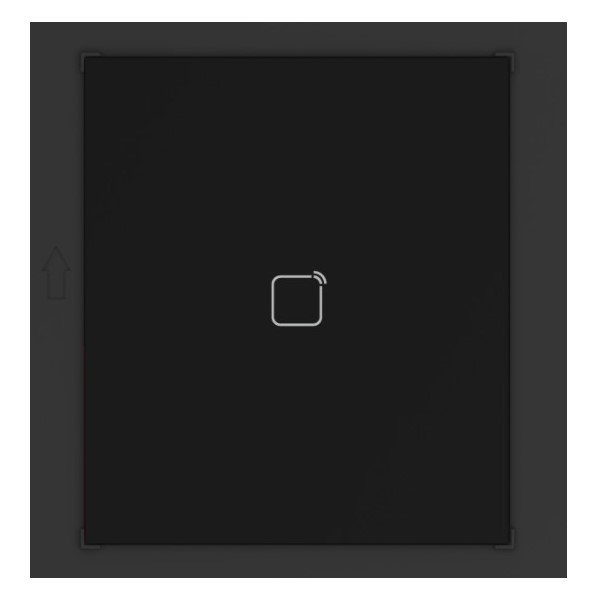

HikVision Card Reader Module DS-KD-E

The Hikvision DS-KD-E is a card reader module that forms part of the KD8 Series Pro Modular Door Station. This device is specifically designed to enhance the functionality of video intercom systems by providing a secure and efficient way of door access control. This card reader module supports door unlocking via card swiping, making it a convenient and secure solution for access control in various settings. It is capable of issuing new cards, adding to its versatility and user-friendliness.

The DS-KD-E operates with an embedded Linux operating system and is powered by an embedded MCU processor. This setup ensures reliable performance and stability of the system. The module does not support video or display features as its primary function is focused on card reading for access control.

In terms of its physical build, the DS-KD-E is designed for both flush and surface mounting, which allows for flexibility in installation based on the specific requirements of the site. It has a compact size with dimensions of 98.5 mm × 100 mm × 33.7 mm, ensuring it does not require a large space for installation.

The device is designed to withstand outdoor environmental conditions, demonstrated by its protective level of IP65. This rating indicates that it is protected against dust ingress and low-pressure water jets from any direction, making it suitable for outdoor use. The operating temperature range of the DS-KD-E is between -40° C to +55° C, and it can operate in humidity levels of 10% to 95%, ensuring reliable performance in various weather conditions. The power consumption of the DS-KD-E is less than 2 W, highlighting its energy efficiency. The device also includes an RS-485 interface, which is a standard for serial communication in industrial environments, adding to its robustness and reliability.

In summary, the Hikvision DS-KD-E card reader module is a durable, efficient, and user-friendly solution for access control in video intercom systems. Its integration capabilities, combined with its robust build and environmental resistance, make it a suitable choice for a wide range of applications.
