Brand
Manufacturer part number
UC-Display
Warranty
?
12 months
EAN
0810010075345
Ubiquiti Connect Display
Ubiquiti Elite Distributor
out of stock
?
653.07 €
653.07 €
Ubiquiti Elite Distributor
Available alternatives
Detailed description

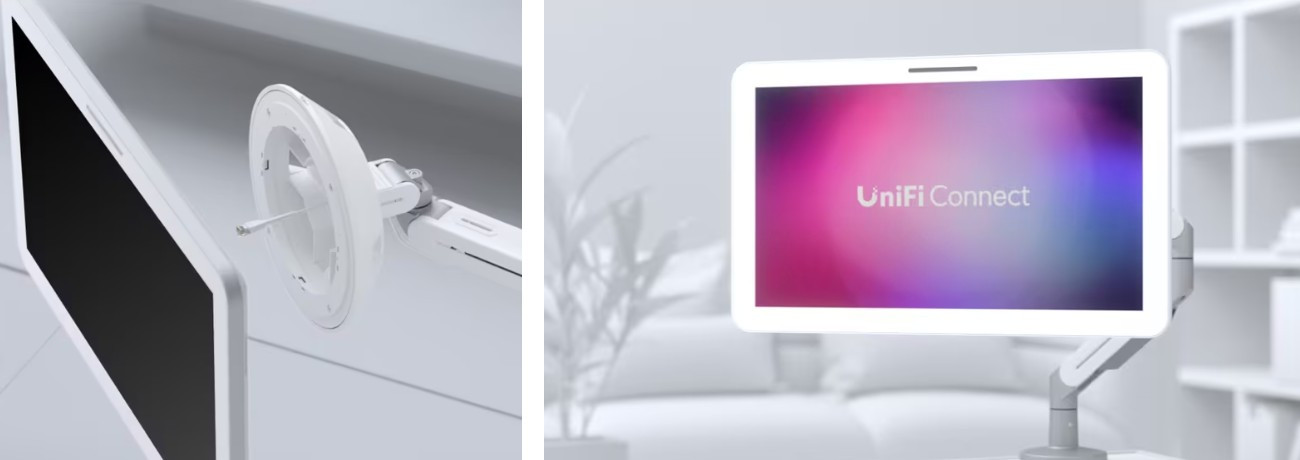

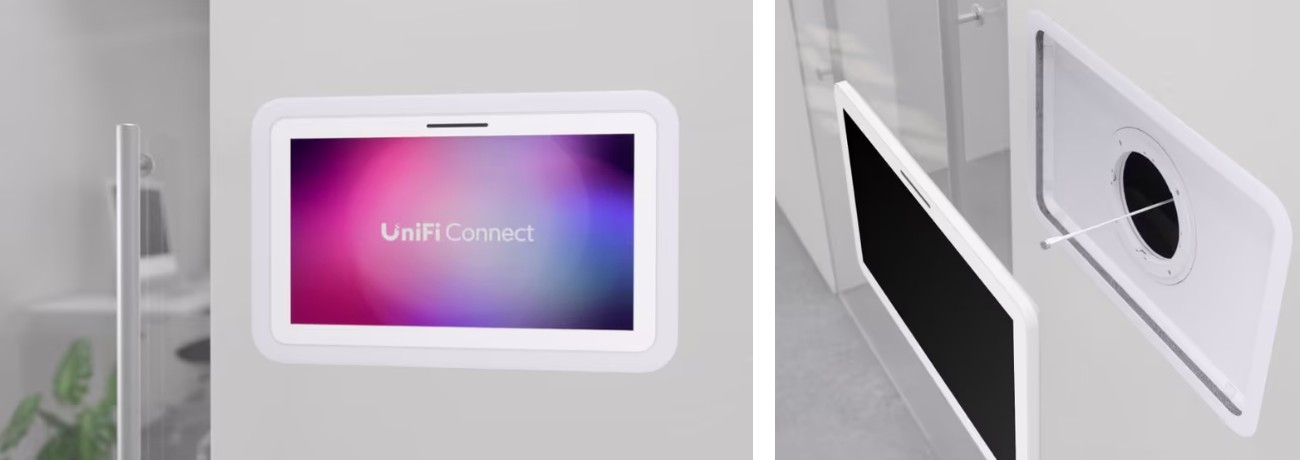

UC-Display is an ultra-bright 21.5" Full HD touchscreen display designed for UniFi Connect. The display supports PoE++ in and requires UniFi PoE++ switch for powering. UC-Display shows multimedia, web pages, and Android apps with UniFi Connect. The display supports multiple mounting options including VESA mount adapter, table stand, surface mount, arm mount and flush mount. The VESA mount adapter is included, other mounts are optional and should be purchased separately. Managed with the UniFi Connect application: Version 2.1.14 and later (web) / 1.0.0 and later (iOS) / 1.0.0 and later (Android).
Technical Specs / Datasheet
Compatible products
Specifications
Display
Display Size
21.5 inch
Touch Screen
yes
Video
Resolution
1920 x 1080
Audio
Microphone
Build-in
Speaker
Build-in
Interfaces
RJ45 Ports
(1) 1 Gbps
USB Ports
(1) USB Type C
Management
Ethernet, Bluetooth
System Specification
Chipset
Octa-core ARM® Cortex®-A53 at 2.2 GHz
RAM
3 GB
Storage Memory
32 GB
Power
Power Method
802.3bt PoE++
Max Power Consumption
27 W
Physical Parameters
Material
Aluminium, Plastic
Dimensions
538.3 x 330 x 37 mm
Weight
4.9 kg
Operating Temperature
0 °C to 40 °C
Environment
Indoor
