Brand
Manufacturer part number
AOA-2458-79AM
Warranty
?
12 months
EAN
4718050306985
Alfa 2.4/5GHz Outdoor Omni Antenna 7/9dBi N-Male
in stock
?
15.49 €
15.49 €
Available product variations
Detailed description
ALFA AOA-2458-79AM is a new high quality, low cost TAA compliant dual band 9 dBi gain omni-directional 2.4/5 GHz Wi-Fi antenna with N-male connector. The gain is 9 dBi for 5 GHz and 7 dBi for 2.4 GHz. This has weather proof casing. This is a great antenna for boat or RV use.

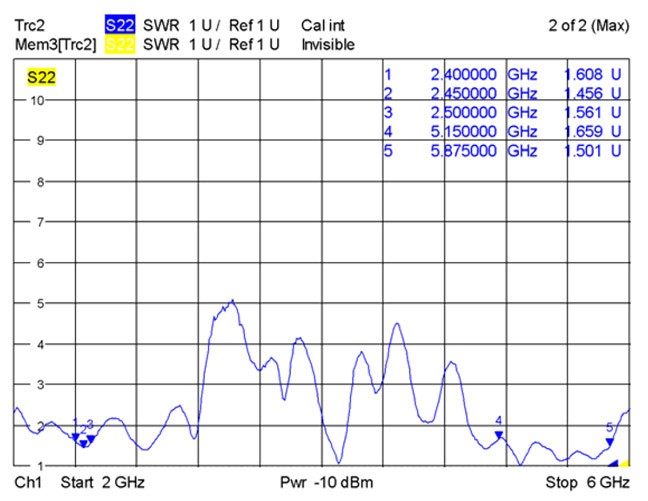

VSWR

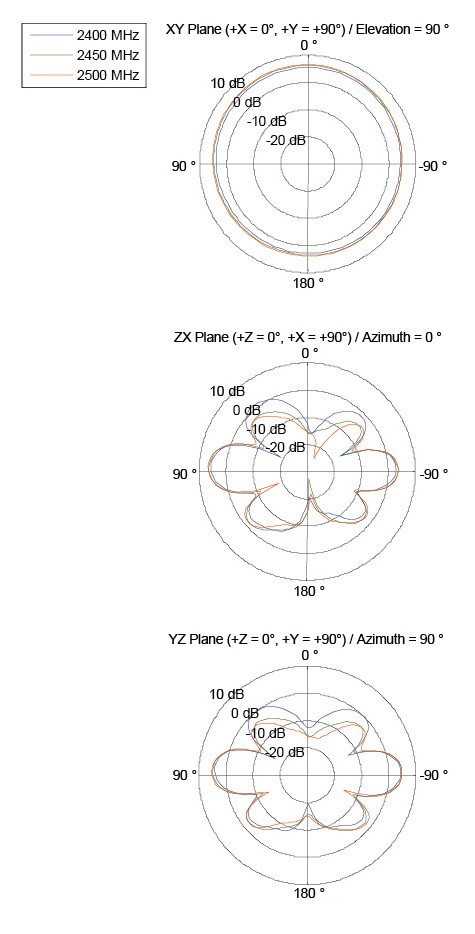

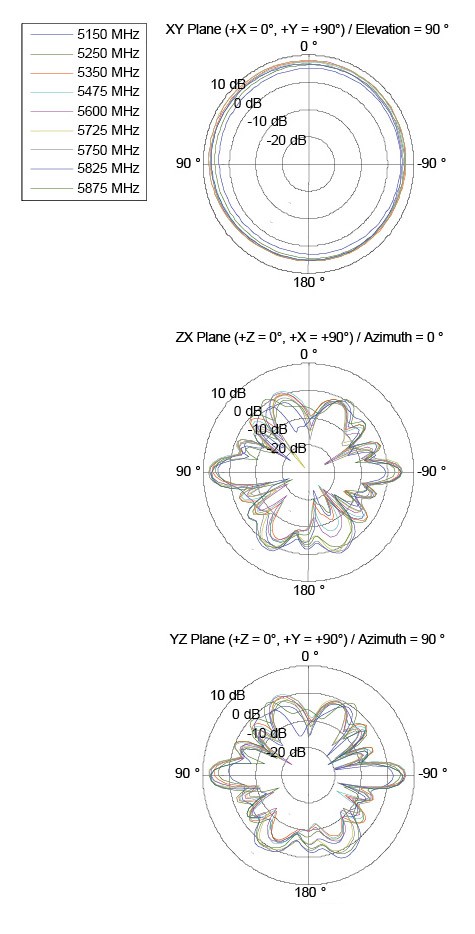

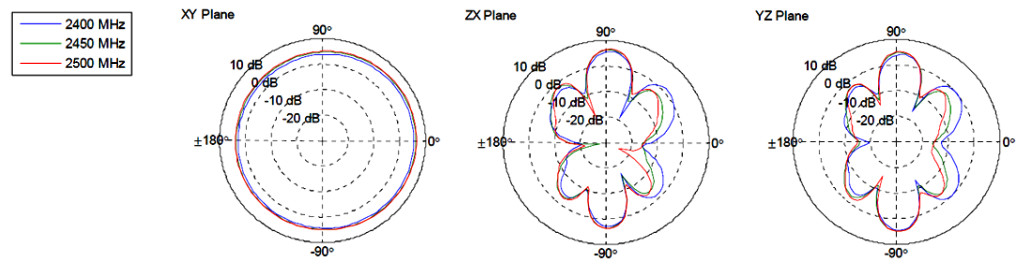

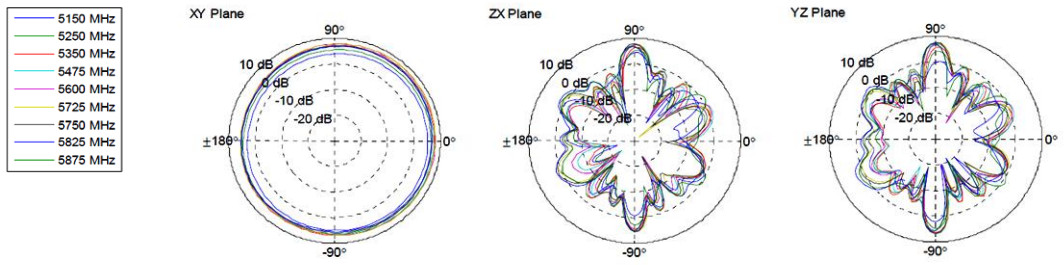

Frequency Diagram
Technical Specs / Datasheet
Compatible products
Specifications
Antenna
Antenna Design
Omni
Wireless Antenna Frequency Range & Gain
2.4 - 2.5 (GHz) 7 (dBi), 5.15 - 5.875 (GHz) 9 (dBi)
Beamwidth
360 ° Vertical
Polarization
Linear, Vertical
VSWR
< 2.0
Impedance
50 Ω
Connectors
RF Connectors

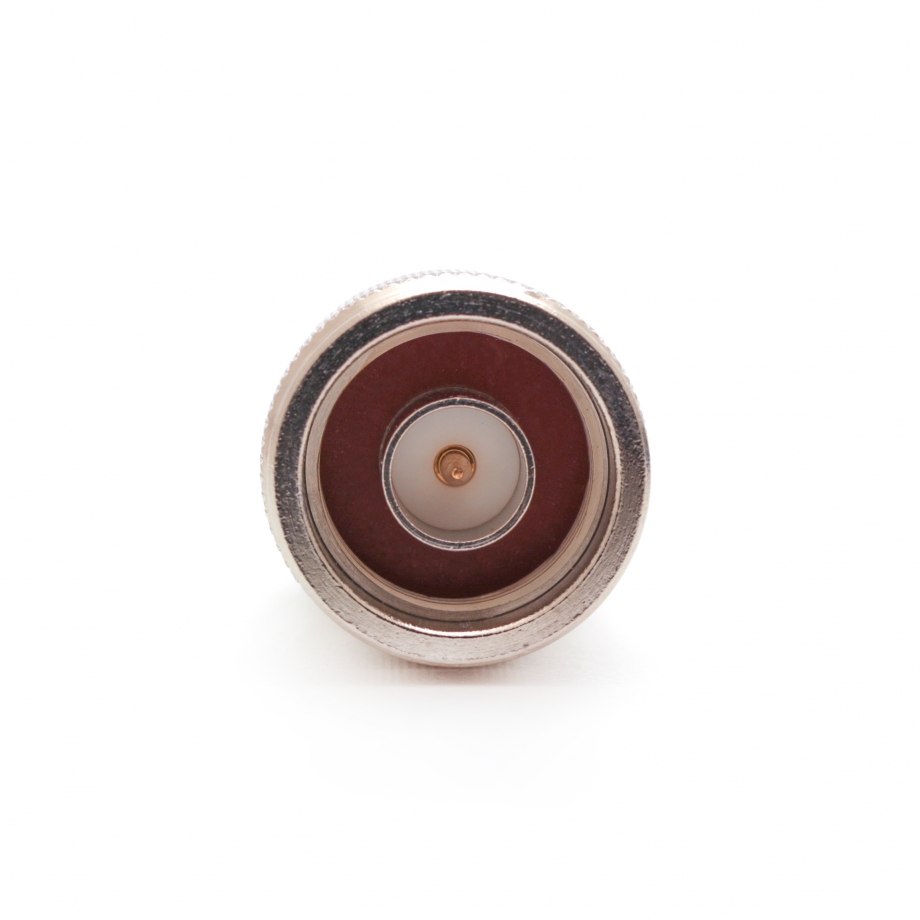

(1) N Male
Physical Parameters
Color
White
Material
Fiberglass
Dimensions
Ø22 x 322 mm
Operating Temperature
-40 °C to 85 °C
Environment
Outdoor
