Brand
Manufacturer part number
AOA-2409TFA
Warranty
?
12 months
EAN
4718050307562

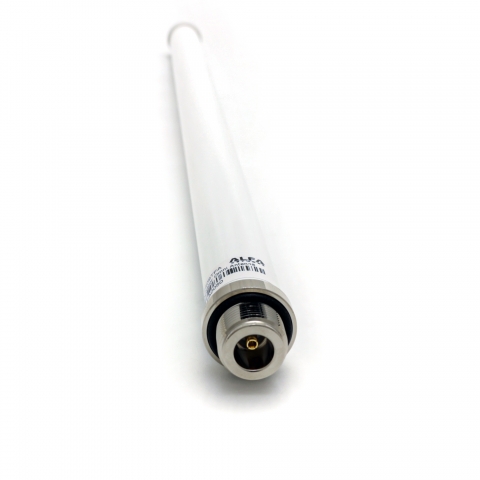

Alfa 2.4GHz Outdoor Omni Antenna 9dBi N-Female
in stock
?
18.67 €
18.67 €
Available product variations
Detailed description
The AOA-2409TFA is an omnidirectional antenna from ALFA Network for outdoor use. Operates in the 2400-2500 MHz frequency range according to the SISO 1x1 standard, with a gain of 9 dBi. Equipped with a waterproof N Female connector.
Special design for Alfa Tube 2.4 GHz, Ubiquiti Bullet 2.4 GHz, Mikrotik Groove 2.4 GHz series.
Technical Specs / Datasheet
Specifications
Antenna
Antenna Design
Omni
Wireless Antenna Frequency Range & Gain
2.4 - 2.5 (GHz) 9 (dBi)
Beamwidth
360 ° Vertical
Polarization
Linear
VSWR
< 2.0
Impedance
50 Ω
Connectors
RF Connectors
(1) N Female
Physical Parameters
Dimensions
Ø22 x 418 mm
Weight
0.108 kg
Operating Temperature
-40 °C to 80 °C
Mounting Method
Wall Mount
