HikVision 32-Channel PoE NVR DS-7732NXI-K4/16P

in stock
?
527.26
in stock
?
527.26

plug

Manufacturer part number

DS-7732NXI-K4/16P

Warranty

?
12 months

EAN

6931847174958

Category

Detailed description

Powerful 32-Channel NVR

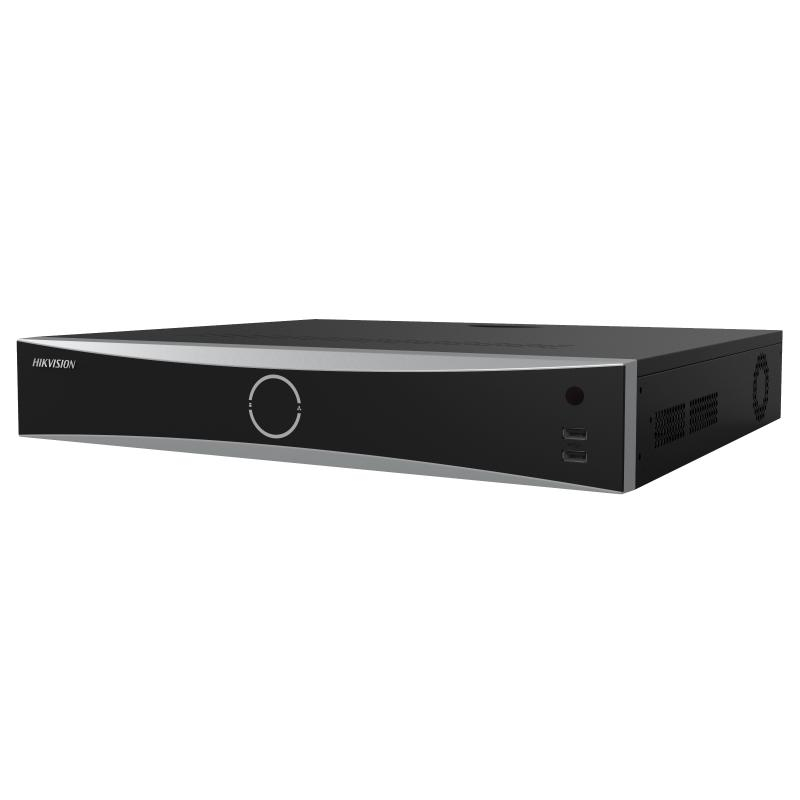

The Hikvision DS-7732NXI-K4/16P is a professional-grade Network Video Recorder designed for robust security monitoring applications. This versatile recorder offers exceptional performance and advanced features, making it ideal for various commercial and industrial environments. The NVR supports up to 32 IP camera connections, allowing you to manage a comprehensive video surveillance system. DS-7732NXI-K4/16P features 16 built-in PoE (Power over Ethernet) ports. This eliminates the need for separate power supplies for PoE-compatible cameras, simplifying installation and reducing cabling complexity.

High-Resolution Recording and Playback

The DS-7732NXI-K4/16P supports recording and playback of high-resolution video footage, providing exceptional clarity and detail for accurate identification and event review. While the exact maximum resolution may vary depending on frame rate and channel count, it can support up to 12 MP for individual channels. This NVR utilizes advanced video compression technologies like H.265+, H.265, and H.264. These codecs significantly reduce file sizes while maintaining high video quality, optimizing storage efficiency and network bandwidth usage.

Enhanced Security Features

Hikvision's proprietary AcuSense technology integrates advanced algorithms to provide more intelligent and focused security monitoring. It can distinguish between people and vehicles, minimizing false alarms triggered by irrelevant motion, such as animals or moving tree branches. The NVR incorporates advanced Motion Detection 2.0 technology, offering improved accuracy in distinguishing between human and vehicle movement compared to traditional motion detection. This reduces false alarms triggered by irrelevant motion.

Additional Features

The DS-7732NXI-K4/16P provides HDMI and VGA outputs for connecting to displays for local video monitoring and playback. The NVR provides a dedicated 1 Gigabit Ethernet port for high-speed network connectivity. This allows for efficient data transfer between the NVR, cameras, and other network devices. The DS-7732NXI-K4/16P supports the connection of up to four SATA hard disk drives (HDDs) for video storage. This allows for extensive video storage capacity, depending on the installed HDDs' capacities.

Specifications

NVR

Supported Video Formats

H.264, H.264+, H.265, H.265+
IP Video Input

32 channels
Max Recording Resolution

12 MP

Interfaces

RJ45 Ports

(17) 1 Gbps
Number of PoE Ports

16 pcs
PoE Out Standards

802.3af (PoE), 802.3at (PoE+)
USB Ports

(2) USB-A 2.0, (1) USB-A 3.0
Communication Interface

RS232, RS485
Video Ports

HDMI, VGA
Audio Ports

1 Input Line, 1 Output Line

System Specification

Hard Drive Bay

(4) 3.5" SATA
Hard Drive

Not Included
Max Capacity for Each HDD

10 TB

Power

Supported Input Voltage

100 - 240 V AC
Max Power Consumption

20 W

Physical Parameters

Color

Black
Dimensions

445 × 400 × 75 mm
Weight

5 kg
Operating Temperature

-10 °C to 55 °C
Environment

Indoor
